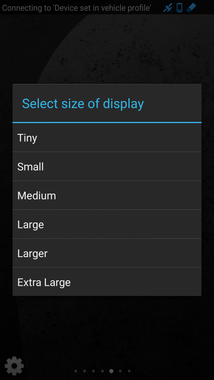

select the size on a phone pick small on a larger screen pick medium

I already built the wireless units needed to turn the orion into a wireless unit ... then you can either use a android phone or do like a few of the ranger ev owners have done and installed a complete stereo system with the correct Bluetooth and you get the bonus of wifi ... email.....music....and all of the great things about a hands free system etc..  anyway lets set up the torque application to be able to use the darn thing ............

you need to fill in the information to create the pids ...  from the next picture fill in the information lines .. the first line is the pid

that is the number behind where it says pid then fill in a long name and a short name(they can be the same name) fill in minimum and maximum values shown ..fill in the value and then the equation ...

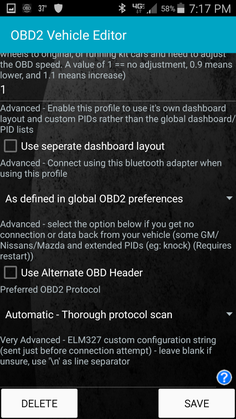

Then scroll to bottom and click on save

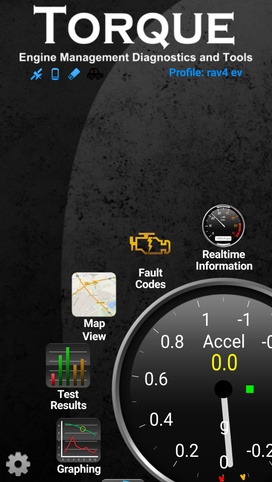

go back to front screen once all the pids are entered and this time click on realtime information ....

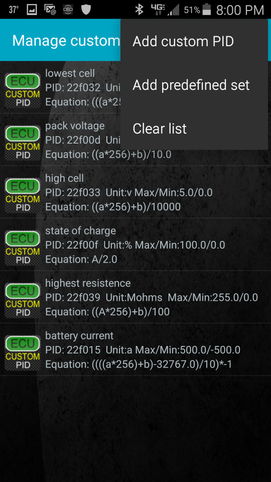

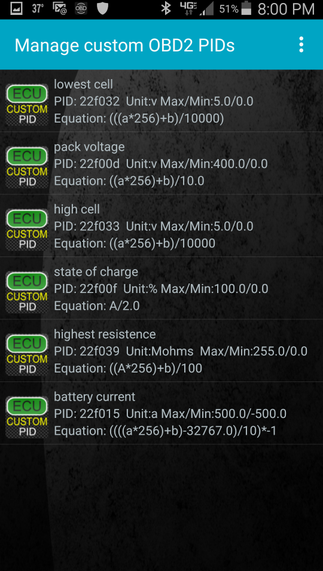

here is the list of pids I use myself so fill in the information needed after a couple you will figure it out ..

Setting up the torque application

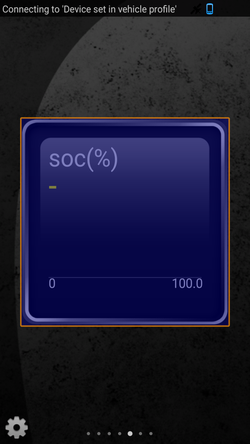

and up will pop the dials you create ... keep going until you have all the ones on the screen you want ......

Once you get all your dials the way you want you still wont have data or information in them ...  close down the application then install your wireless device in the ranger ev or rav4 ev or any other vehicle you have the orion installed in .......

then pair your phone or laptop or whatever you have the torque Bluetooth app installed on ...

​then once it is paired you can start the app and go and click on realtime information and wait about 2 to 3 minutes and it should start showing the info and data you would like to see ...

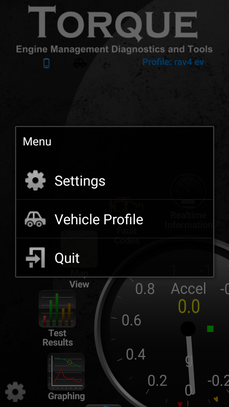

On this menu click on vehicle profile

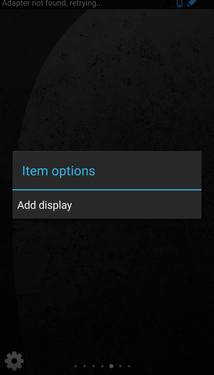

Now touch the screen anywhere and this screen pops up touch add display

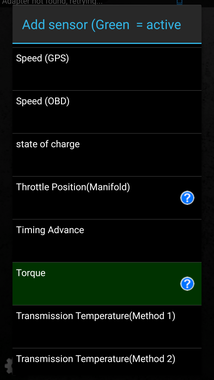

scroll down and pick out the pid you want to display based on the name you gave them pick it .....

tap on the icon and up comes this above screen.....on the bottom left there is 3 tabs click on them and a menu comes up

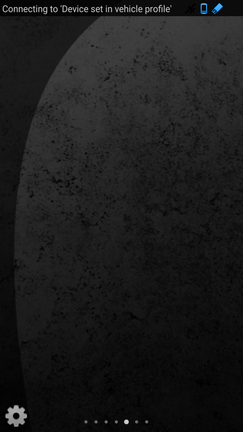

you will have a screen come up touch the dial that is on the screen and from the list delete it ... do this until you have this blank screen like above ...

click on it and a drop down menu will appear click on add custom PID (I know it shows pids already in here because I have already added them pretend they are not there and you are going to add them ...

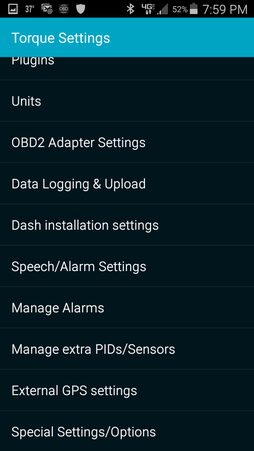

click on the icon bottom left again and go into the settings this time ..... scroll down and go to manage pids click on it ....

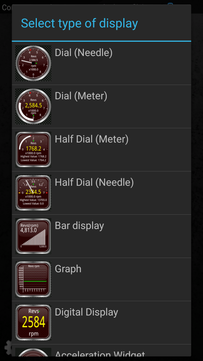

select a type of display until you play with it a bit I would suggest pick the digital display... you can change it later

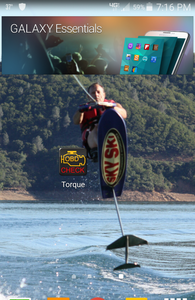

Download the app from the play store or wherever you get it from ...  once you download it you will have an icon on the screen like this ......

once you click on the manage extra pids/Sensors you will have pretty much a blank screen look at upper right corner ...

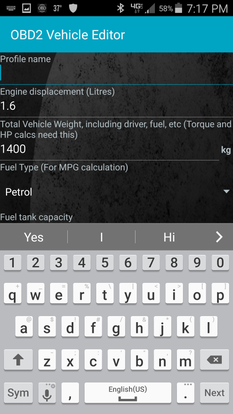

Fill in a profile name with a name you want to ..... any name works

hope this all helps !!!   enjoy your application

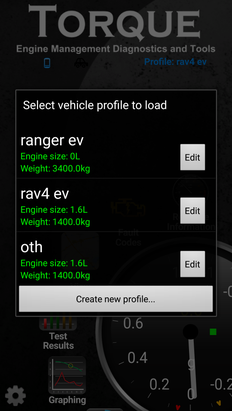

click on create new profile .......
