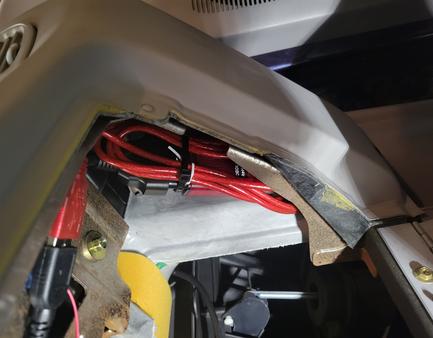

wire tie up the cable out of the way .... put the 2nd usb cable into the glove box and close it up.....

Direct connect torque cable kit

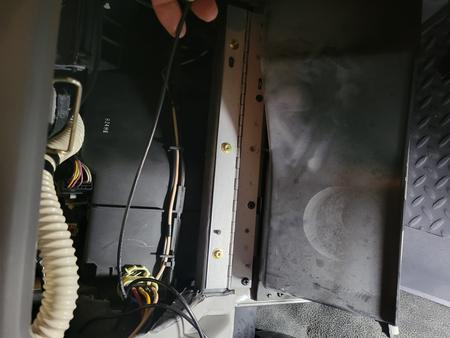

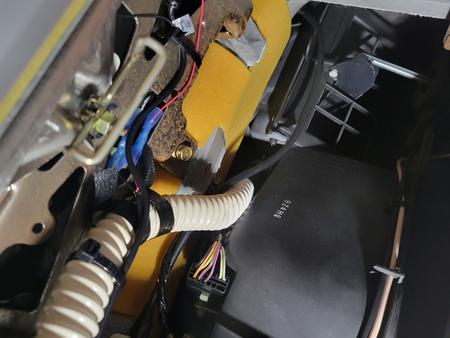

nice and run the wire up behind the glove box ....

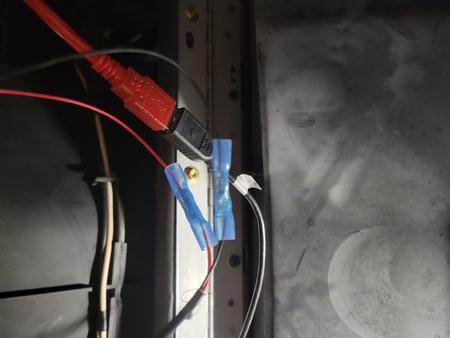

once the wire is ran behind glove box crimp the two wires for can to the new connection kit black to black and red to red pretty easy ..... then plug in the cable to one of the two usb connections on the android stereo system

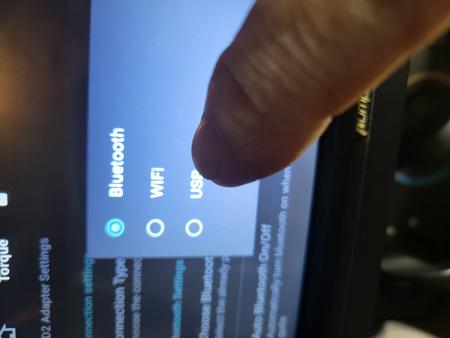

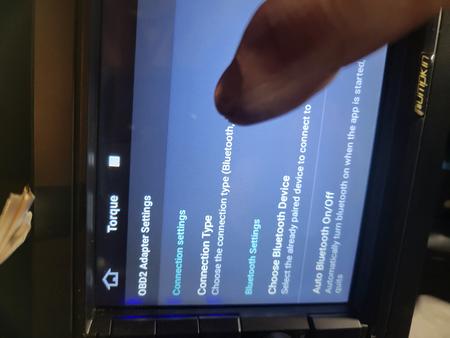

Go into the settings then go into obd2 adapter settings and go to connection type and choose USB

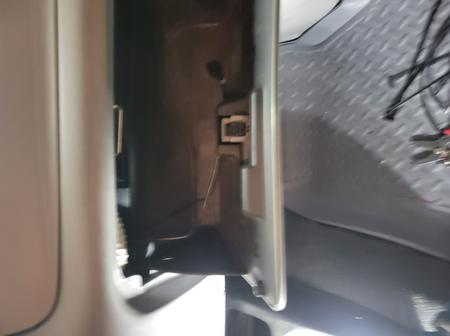

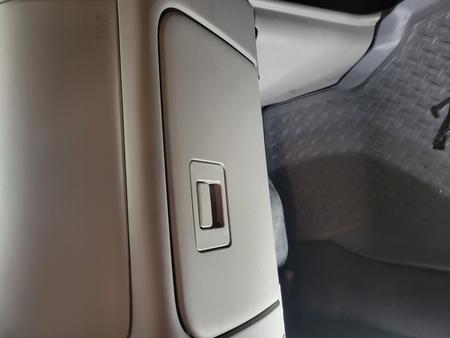

the cable and obd2 connection can connector fits very nicely into the corner to the right of the glove box hides it perfectly .....

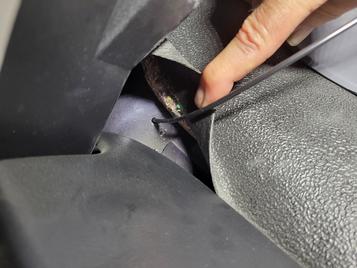

I am going to get right to it .... i like to drill the hole so it will be hidden so i drill the hole right behind the cup holder and feed the two wire wiring up to under hood from the tunnel ..

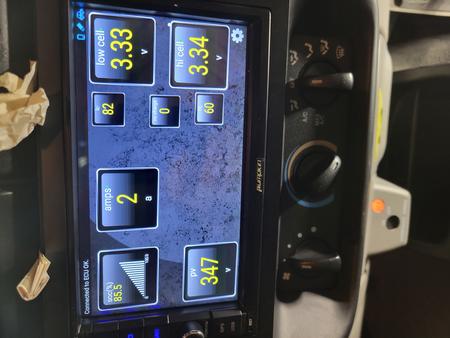

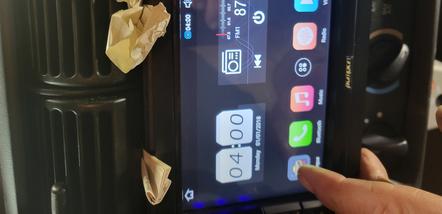

Once that is all hooked up we head in and turn android stereo on and do the programming... once you program your dials etc using the torque app .......... here is the next steps to get it to know the sx cable is directly connected ....

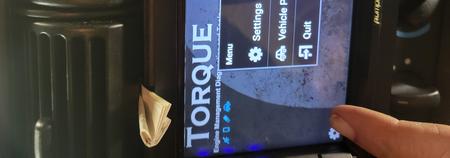

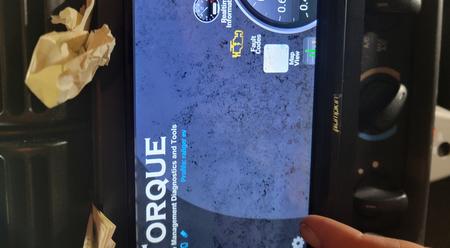

First start up torque then go into the settings section

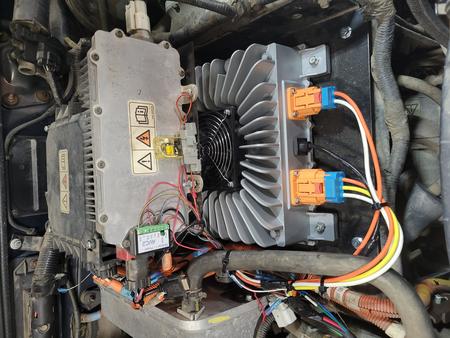

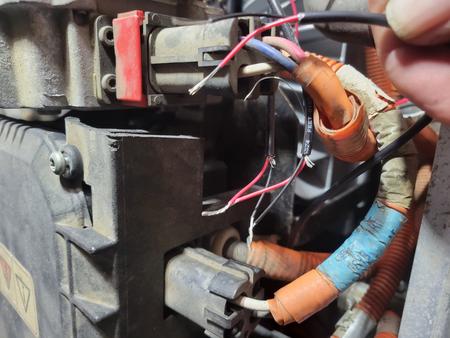

find the can wires and hook the 2 wire cable ran from inside and hook it all up ....

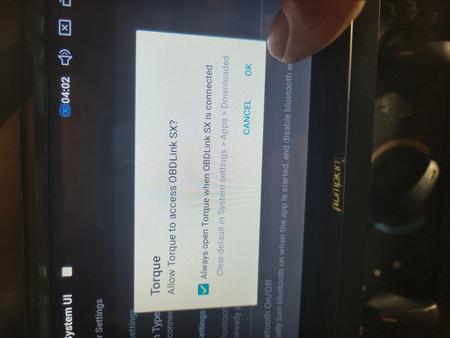

sometime this will pop up check off the green box and select ok and you are done ....

This is a direct connect kit to now use instead of the bluetooth connection kit that has been a bit buggy to say the least ....... hopefully this cures all the connection problems i have had in the past.....

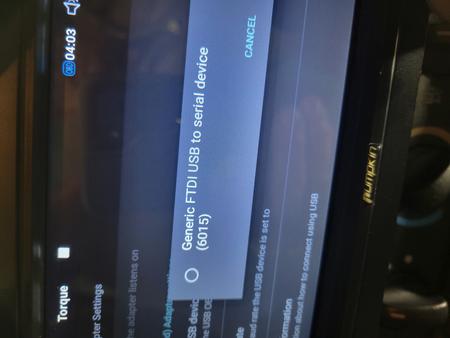

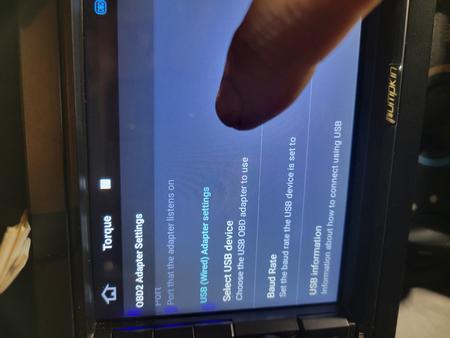

select the usb device and it will give you a choice and then select it ... if it does not give you the choice go out of torque and back in and it will show up ....
